Storyboard Constraints

Help autolayout out, visually

Image for post
Image for post
Photo by Wojtek Mich on Unsplash

Difficulty: Beginner | Easy | Normal | Challenging
This article has been developed using Xcode 11.4.1, and Swift 5.2.2

Updated for Xcode 12.2 and Swift 5.3.1

Prerequisites:

The example with a UILabel

This project is going to show how to create a UILabel with a fixed width and height, placed nicely onto the Storyboard.

Move to the storyboard

You can access the Storyboard by selecting it in the project navigator

Image for post
Image for post

From here we add a UILabel to the storyboard by selecting add object which is a plus at the top of the Xcode window

Image for post
Image for post

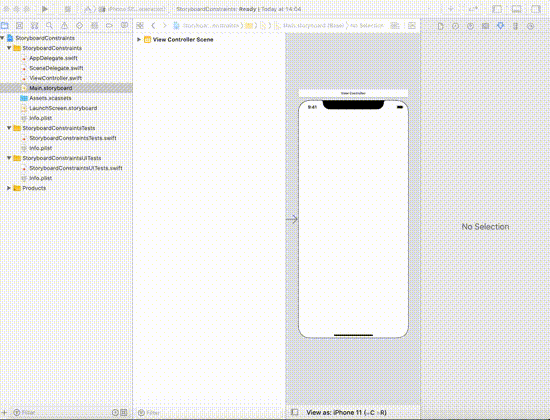

which is then drag and dropped onto the storyboard — if you get it just in the centre blue guidelines appear making it clear that the object is in the center of the view. An animated GIF to make this clear? OK

Image for post
Image for post

Adding the constraints

Finally! The heart of this article. The technique to add constraints if to control-drag from object to object.

CenterX from UILabel to UIStoryboard
CenterY from UILabel to UIStoryboard
Height from UILabel to UILabel
Width from UIlabel to UILabel

Doing so leads to the following constraints:

Image for post
Image for post

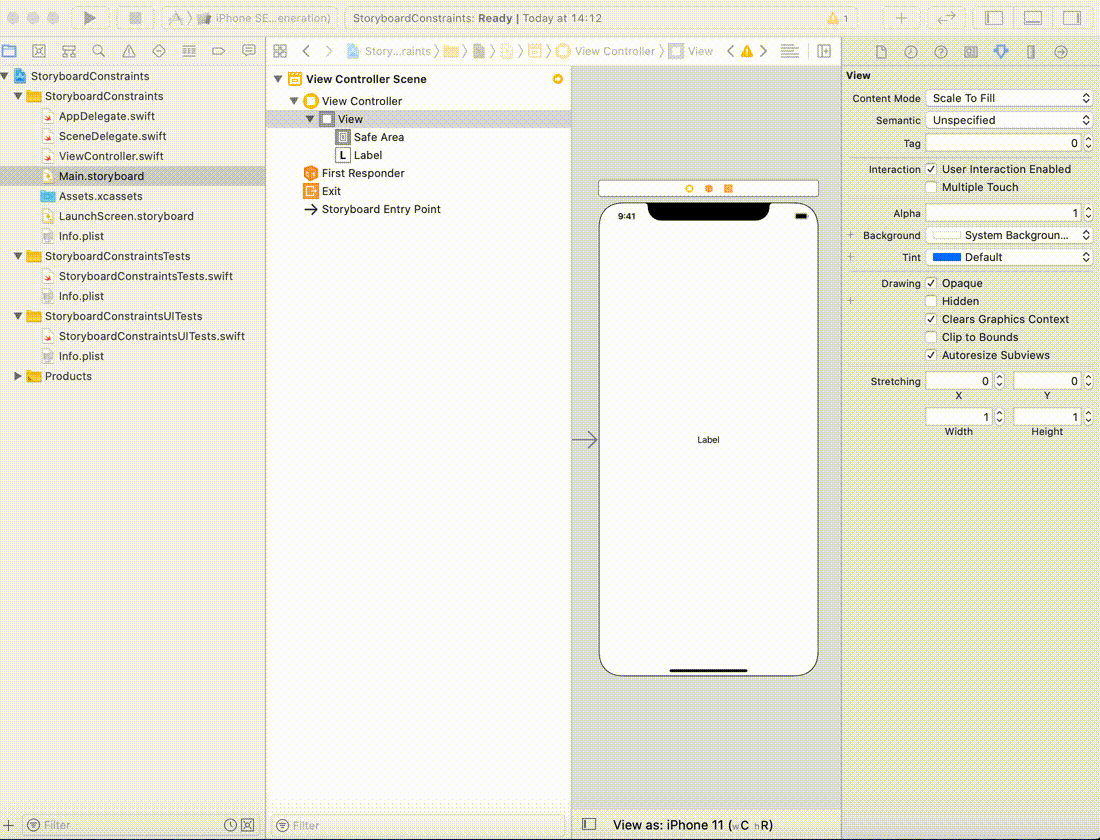

With an animated GIF to show how this is done:

Image for post
Image for post

Note that in this video I used both the label as displayed on the UIViewController and the one on the left-hand side of the screen on the View Controller Scene

Image for post
Image for post

have you seen the little yellow dot that is on the left hand side. That’s an Interface Builder warning.

In this case? It’s just that the label might cause clipping and Xcode recommends that we make the width >= 42 rather than 42 itself. If you want to do that to get rid of the warning, why don’t you do that? You certainly can (just click the yellow dot and you’ll be able to)

Conclusion

Adding constraints in the storyboard is a common thing you’ll need to do as an iOS developer. I hope this article has given you a little bit of a hand, and resolved any issues that you’ve got. If you want to see the completed project, download from the REPO.

If you’ve any questions, comments or suggestions please hit me up on Twitter
